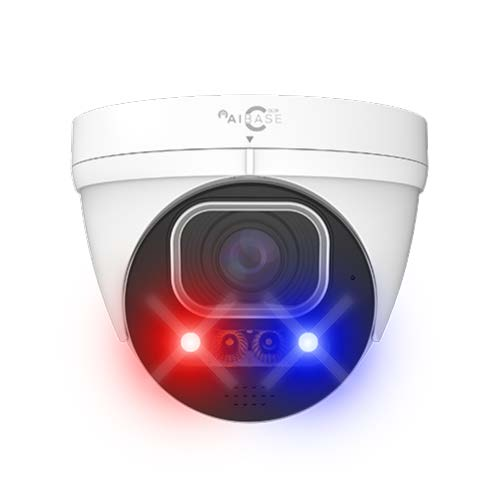

The top-of-line 4K turret with a 2.8–12mm motorized zoom lens, so the field of view can be adjusted remotely after install instead of committing to a fixed angle. Pairs a large 1/2.7" sensor with a fast F1.2 aperture for genuinely usable full-colour footage well after dark.
- 0.007 lux full colour (AGC on)
- IR to 30m / WarmLight to 25m, switchable
- Red & blue active-deterrence lights
- Built-in mic, speaker & custom voice alerts
- Face, human & vehicle AI detection suite
- IP66, Micro SD to 256GB, PoE or 12V DC
Full specification sheet
| Imaging Device | 1/2.7" Progressive CMOS, 8MP 3840×2160 |
|---|---|
| Lens | 2.8–12mm motorized (zoom), F1.2, FOV 113°(H)/59°(V)/139°(D) |
| Min. Illumination | Colour 0.007 lux @F1.0 (AGC on); B/W 0 lux (IR on) |
| Supplemental Light | 2× IR LED (30m), 2× WarmLight (25m) — default warm, switchable IR |
| WDR / Noise Reduction | DWDR / 3D DNR |
| AI Smart Features | Face Detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density, Queue Length, Rare Sound Detection |
| Audio | Built-in mic & speaker, custom voice |
| Storage | Micro SD up to 256GB |
| Compression / Streams | H.265/H.264, triple stream up to 8MP mainstream @20fps |
| Network | RJ45 10/100, ONVIF (S/G/T), HTTPS/RTSP/FTP/DDNS etc. |
| Power | DC12V max 7W; PoE (48V) max 8.6W |
| Ingress / Environmental | IP66, -35°C to +60°C, ≤95% RH |
| Build | Metal housing, NDAA compliant |
| Optional Bracket | ACC-BRK-B-B17W |
Same 8MP sensor and low-light rating as the motorized model, in a simpler fixed 2.8mm lens body. Runs Smart Illumination to shift between IR and warm light automatically, and ships with P2P cloud pairing and push notifications through the free app.
- 0.007 lux full colour (AGC on), F1.0
- IR to 30m / WarmLight to 25m, switchable
- Red & blue active-deterrence lights
- Region entrance/exit + full AI suite
- P2P Cloud Management & push notifications
- IP67, PoE (802.3af), NDAA compliant
Full specification sheet
| Imaging Device | 1/2.7" Progressive CMOS, 8MP 3840×2160 |
|---|---|
| Lens | 2.8mm fixed (M12), F1.0, FOV 110°(H)/58°(V)/131°(D), min. object distance 2m |
| Min. Illumination | Colour 0.007 lux @F1.0 (AGC on); B/W 0 lux (IR on) |
| Supplemental Light | 1× IR LED (30m), 2× WarmLight (25m), 2× Red/Blue deterrence LEDs |
| WDR / Noise Reduction | DWDR / 3D DNR |
| Motion Detection | Off/On, 8 levels |
| AI Smart Features | Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, Rare Sound, Region Entrance/Exit |
| Audio | Built-in mic & speaker, custom voice |
| Storage | Micro SD up to 256GB |
| Network | RJ45 10/100, ONVIF (S/G/T/M), P2P cloud + app |
| Power | DC12V max 5.9W; PoE (48V) max 7.1W |
| Ingress / Environmental | IP67, -35°C to +60°C, ≤90% RH |
| Build | Metal housing, NDAA compliant |
The budget-friendlier motorized option — same 2.8–12mm remote-adjustable zoom as the 4K model, on a 5MP sensor, with an even lower colour-illumination rating and license plate detection added to the AI suite.
- 0.002 lux full colour (AGC on) — most light-sensitive of the lineup
- IR to 30m / WarmLight to 25m, switchable
- Red & blue active-deterrence lights
- License Plate Detection included
- Built-in mic, speaker & custom voice
- IP67, Micro SD to 256GB, PoE or 12V DC
Full specification sheet
| Imaging Device | 1/2.7" Progressive CMOS, 5MP 2880×1620 |
|---|---|
| Lens | 2.8–12mm motorized (zoom), F1.2, FOV 113–35°(H) / 59–20°(V) / 138–41°(D) |
| Min. Illumination | Colour 0.002 lux @F1.0 (AGC on); B/W 0 lux (IR on) |
| Supplemental Light | 2× IR LED (30m), 2× WarmLight (25m), 2× Red/Blue deterrence LEDs |
| WDR / Noise Reduction | WDR / 3D DNR |
| AI Smart Features | Face Detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density, Queue Length, License Plate Detection, Rare Sound Detection |
| Audio | Built-in mic & speaker, custom voice |
| Storage | Micro SD up to 256GB |
| Network | RJ45 10/100, H.265/H.264, ONVIF (S/G/T) |
| Power | DC12V max 5.7W; PoE (48V) max 7.2W |
| Ingress / Environmental | IP67, -35°C to +60°C, ≤90% RH |
| Build | Metal housing, NDAA compliant |
| Optional Bracket | ACC-BRK-B-B17W |

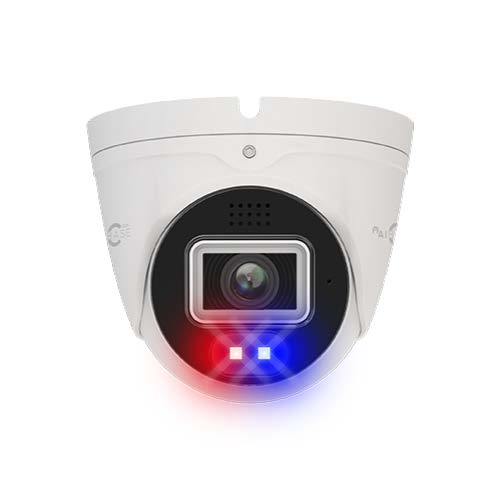

Built around a larger 1/1.8" sensor than the rest of the lineup and the lowest colour-illumination rating on the spec sheet — 0.0005 lux. It has no infrared emitters at all; instead it leans on warm-light supplementation and sensor sensitivity to stay in full colour around the clock. See the technology note below for how that compares to IR night vision.
- 0.0005 lux full colour — most sensitive sensor in the lineup
- Large 1/1.8" sensor, F1.0 aperture
- Always-on Full Colour Mode (no B/W switching)
- WarmLight only, viewable to 30m — no IR LEDs
- Facial recognition + full AI detection suite
- IP67, Micro SD to 256GB, PoE (802.3af)
Full specification sheet
| Imaging Device | 1/1.8" large Progressive CMOS, 4MP 2688×1520 |
|---|---|
| Lens | 2.8mm fixed (M16), F1.0, FOV 112°(H)/61°(V)/134°(D) |
| Min. Illumination | Colour 0.0005 lux @F1.0 (AGC on); B/W 0 lux (IR on) |
| Supplemental Light | No IR LED; 2× WarmLight, viewable to 30m (default, always on) |
| Backlight / WDR / NR | Backlight Compensation (5 zone) / WDR / 3D DNR |
| Image Setting | Full Colour Mode only |
| Privacy Masking | Off/On, 4 zone rectangle |
| AI Smart Features | Facial Recognition, Pedestrian & Vehicle Detection, Perimeter Intrusion, Line Crossing, Cross Counting, Stationary Object Detection, Crowd Density, Queue Length, License Plate Detection, Rare Sound Detection |
| Audio | Built-in mic & speaker |
| Storage | Micro SD up to 256GB |
| Streaming | Triple-stream (main/sub/mobile), H.265/H.264, unicast/multicast |
| Network | RJ45 10/100, ONVIF (S/G/T) |
| Power | DC12V / PoE (802.3af) |
| Ingress / Environmental | IP67, -35°C to +55°C, ≤95% RH |
| Build | Metal housing, NDAA compliant |
| Optional Bracket | ACC-BRK-B-B17W |
Full-Colour Video in Complete Darkness
AiBase markets the CAM-IP3174-PV-28-AI as part of its "Black Light" line, built around a large-aperture AI-ISP system engineered to deliver full-colour, vivid night video without relying on standard IR night vision or external LED illuminators. Where a conventional camera switches to grainy black-and-white once light drops too low, a Black Light camera is designed to hold true colour straight through.
The spec sheet backs that up: a physically larger 1/1.8" sensor (vs. 1/2.7" on the rest of this lineup), an F1.0 aperture, and a 0.0005 lux colour rating — the most light-sensitive camera we carry. It has no IR emitters at all; it stays in Full Colour Mode continuously, using warm-light fill and sensor sensitivity instead of infrared.
Practically, that means clothing colour, vehicle colour, and license-plate detail stay identifiable at night — exactly where a standard IR camera would have already dropped to monochrome. The Black Light line also includes higher-resolution and bullet-style siblings (up to 4K/8MP, motorized vari-focal, and bullet housings) if a 4MP turret isn't the right fit for a given install.

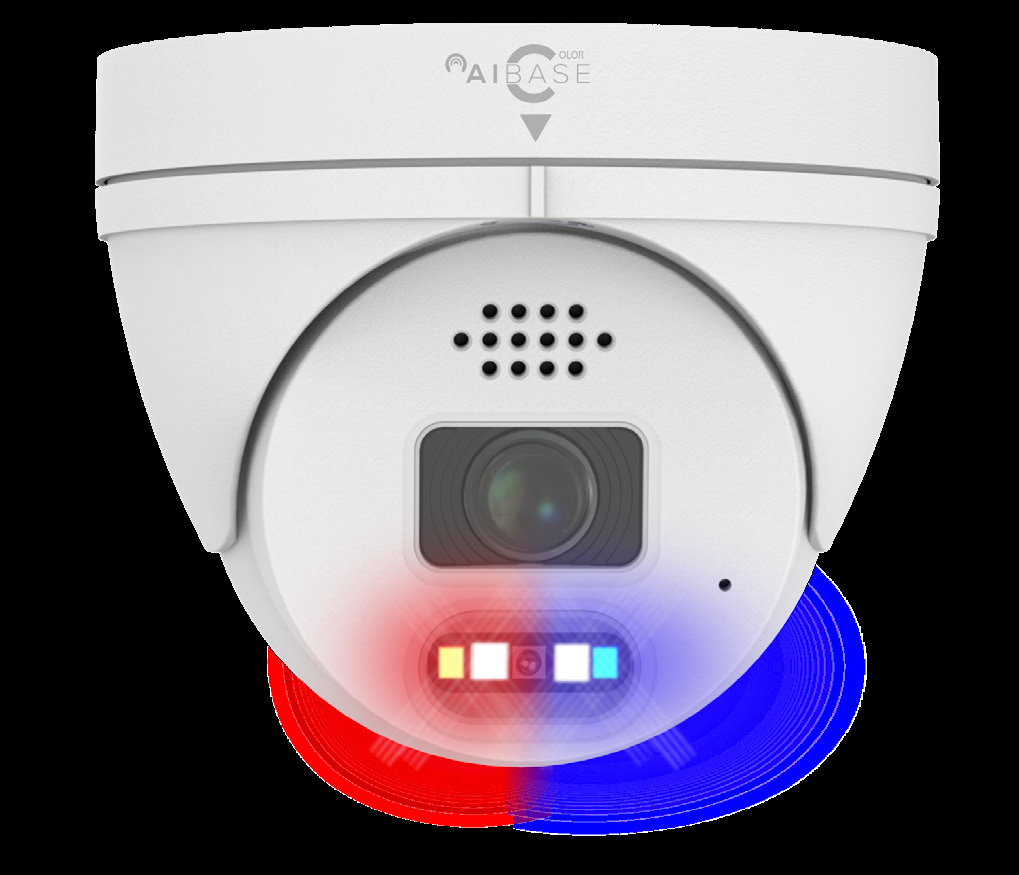

The 5MP counterpart to the 3158W-V2 above — same fixed 2.8mm body, Smart Illumination, and P2P cloud app, on a 5MP sensor at a lower price point. Adds license plate detection to the on-camera AI suite.
- 0.002 lux full colour (AGC on), F1.0
- IR to 30m / WarmLight to 25m, switchable
- Red & blue active-deterrence lights
- License Plate Detection + full AI suite
- P2P Cloud Management & push notifications
- IP67, PoE (802.3af), NDAA compliant
Full specification sheet
| Imaging Device | 1/2.7" Progressive CMOS, 5MP 2880×1620 |
|---|---|
| Lens | 2.8mm fixed (M12), F1.0, FOV 110°(H)/58°(V)/132°(D), min. object distance 2m |
| Min. Illumination | Colour 0.002 lux @F1.0 (AGC on); B/W 0 lux (IR on) |
| Supplemental Light | 1× IR LED (30m), 2× WarmLight (25m), 2× Red/Blue deterrence LEDs |
| WDR / Noise Reduction | WDR / 3D DNR |
| AI Smart Features | Face Detection, Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Region Entrance/Exit |
| Audio | Built-in mic & speaker, custom voice |
| Storage | Micro SD up to 256GB |
| Network | RJ45 10/100, ONVIF (S/G/T/M), P2P cloud + app |
| Power | DC12V max 5.8W; PoE (48V) max 7.1W |
| Ingress / Environmental | IP67, -35°C to +60°C, ≤90% RH |
| Dimensions / Weight | 100×100×85.1mm, approx. 405g |
| Build | Metal housing, NDAA compliant |
An ultra-wide 2.0mm lens covers a full 180° horizontal field of view from a single camera — useful for covering an entire wall, driveway, or property line without stitching multiple cameras together. 120dB WDR keeps bright sky and shaded ground both visible in the same frame.
- 180°(H) / 90°(V) / 180°(D) field of view
- 120dB wide dynamic range
- Dual illumination — IR to 25m, WarmLight to 15m
- Built-in red & blue flashing alarm lights
- Built-in mic & speaker
- IP67, deep-learning AI detection suite
Full specification sheet
| Imaging Device | 1/2.7" Progressive CMOS, 5MP 2880×1620 |
|---|---|
| Lens | 2.0mm fixed (M12), F2.2, FOV 180°(H)/90°(V)/180°(D), min. object distance 0.2m |
| Min. Illumination | Colour 0.007 lux @F1.0 (AGC on); B/W 0 lux (IR on) |
| Supplemental Light | 2× IR LED (25m), 2× WarmLight (15m) — dual source illumination |
| WDR / Noise Reduction | 120dB WDR / 3D DNR |
| Backlight / Privacy | Backlight Compensation (5 zone) / Privacy Masking (4 zone) |
| Alarm | Built-in red & blue flashing lights, sound + warning-light alarms |
| AI Smart Features | Pedestrian & Vehicle Detection, Line Crossing, Region Entrance/Exit, Intrusion Detection, Object Detection, Cross Counting, Heat Map, Queue Length, Crowd Density, Rare Sound Detection |
| Audio | Built-in mic & speaker |
| Storage | Micro SD up to 256GB |
| Streaming | H.265/H.264/H.265+/H.264+/MJPEG, triple-stream, up to 5MP @30fps |
| Network | RJ45 10/100, IPv4/IPv6, ONVIF (S/G/T) |
| Power | DC12V 7.10W / PoE 9.03W (802.3af) |
| Ingress / Environmental | IP67, -35°C to +60°C, ≤90% RH |
| Dimensions / Weight | Ø116.5mm × 97.7mm, approx. 587.5g |
| Build | Metal housing |
Aluminum-alloy junction back box for surface wiring on indoor, outdoor, wall, or ceiling installs. Routes cabling through a 3/4" NPT side or front conduit entry and rates to IP65, so exposed wiring stays sealed on exterior mounts.
